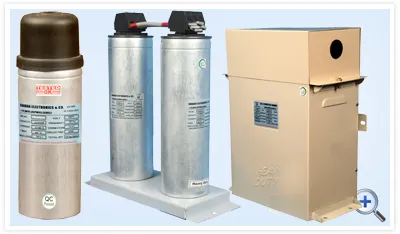

SHARDA's LV MPP Capacitor is designed with metalized film having the feature of self-healing. These capacitors are used in light load industries where inductive load is present. The construction of LV MPP Capacitor is manufactured with metalized film technology.
As metalized film acts as a dielectric as well as part of capacitor. The separate element place either in cylindrical aluminum container or square type CRCA/SS container with soft jelly ic semi solid vegetable oil which is non-biodegradable & environment friendly. These capacitors are incorporate with self-healing technology as well as having facility of over pressure dis-connector to operate at heavy failure to bypass from system.
These capacitor compliance with ISS 13340/13341, IEC 60831.
| Rated output | 5 KVAR to 50 KVAR (Single Unit) |
| 60 KVAR & above (Banking System) | |
| Rated Voltage | 380 Volt to 1000 Volt |
| Type of Connection | Single phase or Three phase |
| kVAR | Voltage | Current | Microfarad | Height (mm) | Diameter (mm) |
Weight (Kg.) |
| 2.5 | 440 | 3.28 | 20.55 | 175 | 45 | 0.8 |
| 5 | 440 | 6.56 | 41.1 | 225 | 64 | 1.1 |
| 10 | 440 | 13.12 | 82.2 | 245 | 75 | 1.5 |
| 12.5 | 440 | 16.4 | 102.75 | 245 | 85 | 1.6 |
| 15 | 440 | 19.68 | 123.3 | 323 | 75 | 2.4 |
| 20 | 440 | 26.24 | 164.36 | 399 | 85 | 2.7 |
| 25 | 440 | 32.8 | 205.49 | 399 | 85 | 3 |
| 30 | 440 | 39.37 | 246.59 | 399 | 90 | 4 |
| kVAR | Voltage | Current | Microfarad | Height (mm) | Length (mm) | Depth (mm) | Weight (Kg.) |
| 2.5 | 440 | 3.28 | 20.55 | 110(50) | 120 (40) | 45 | 1 |
| 5 | 440 | 6.56 | 41.1 | 170(60) | 155 (40) | 55 | 2 |
| 10 | 440 | 13.12 | 82.2 | 200(70) | 210 (40) | 75 | 4 |
| 12.5 | 440 | 16.4 | 102.75 | 200(70) | 210 (40) | 75 | 4.5 |
| 15 | 440 | 19.68 | 123.3 | 250(80) | 230 (40) | 150 | 5 |
| 20 | 440 | 26.24 | 164.36 | 275(90) | 230 (40) | 150 | 7 |
| 25 | 440 | 32.8 | 205.49 | 275(90 | 230 (40) | 150 | 7 |
| 30 | 440 | 39.37 | 246.59 | 330(90) | 230 (40) | 150 | 8 |
| Sr. No. | Description | Technical data |
| 1 | Manufacturer Details | SHARDA Electronics & Co. Plot No. J-32 MIDC Kupwad Sangli, 416436, Maharashtra, India. Make : SHARDA |
| 2 | Reference | IS 13340 : 2012 |
| 3 | Type | Cylindrical / Square type |
| 4 | Rated Output (kVAR) | 05 to 25 kVAR |
| 5 | Rated Bank Output | 30 to 500 kVAR |
| 6 | Rated Voltage (V AC) | 230/415/440/480/525/690 V AC |
| 7 | Temperature (˚C) | 50 ˚C |
| 8 | Frequency (Hz) | 50 / 60 Hz |
| 9 | Connection | Single (1f) / Three Phase (3f) , D or U |
| 10 | Protection | Internal / External Fuse |
| 11 | Discharge Resistors | External Discharge Resistors Provided |
| 12 | Insulation Level | 3/- KV AC |
| 13 | Maximum Voltage | 110% of Rated Voltage |
| 14 | Maximum continues over current | 160% Rated Current |
| 15 | Inrush Current | 300 times Rated Current |
| 16 | Humidity | Less Than 95% RH. |
| 17 | Maximum altitude | 1000 Meter Above Sea Level |
| 18 | Impregnant | Epoxy / Oil / Gas |
| 19 | Type of Dielectric | MPP |
| 20 | Power Losses/ kVAR | 0.12 Watts / kVAR |
| 21 | Discharge Time | Within 1 Minutes as per IS |
| 22 | Installation | Indoor / Outdoor, Wall / Panel / Floor Mounted |
| 23 | Life Of Capacitor | More Than 1.5 Lakh Hours |
